Fluimac Air Diaphragm Pump 3/8" P0020 pneumatic pumps

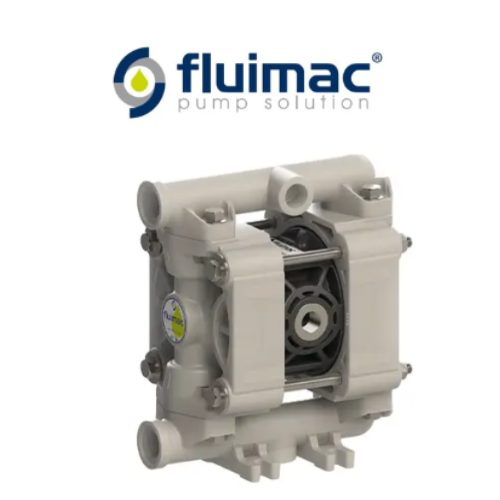

Air Diaphragm Pump 3/8" Fluimac P0020 pneumatic pumps provides 18 liters per minute to 8 bar discharge pressure. The unit is ideal for small aggressive chemical transfer duties or in situations where the fluid being pumped is flammable. The P0020 is available in polypropylene fluid end with Teflon diaphragms and valves. PLEASE CHECK STOCK IF QUANTITY SHOWN IS ZERO. OTHER MATERIAL ALSO AVAILABLE PLEASE CALL FOR MORE INFO.

Fluid connections: 3/8” BSP

Air connection: 6 mm

Max flow-rate: 20 lt/min

Max air pressure: 7 bar

Max delivery head: 70 m

Max Suction Lift Dry: 5 m

Max Suction Lift Wet: 9,8 m

Max Solid passing: 2,5 mm

Noise level: 65 dB

Max viscosity: 10.000 cps

Displacement per stroke: 30 CC~
