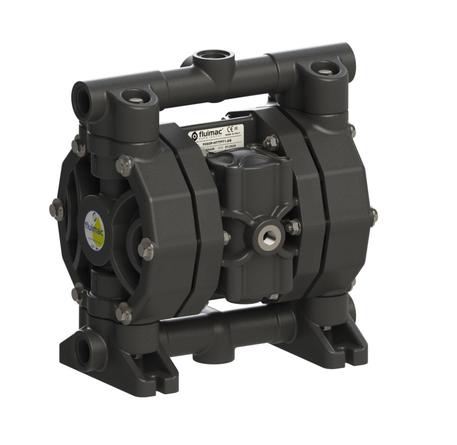

Fliumac Diaphragm Pump P060 1/2".

Fluimac Pump P060 P60 1/2" diaphragm pumps

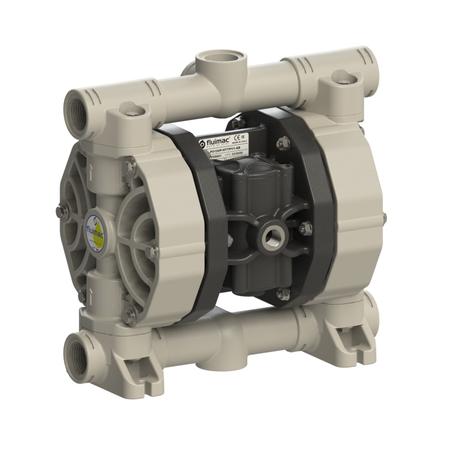

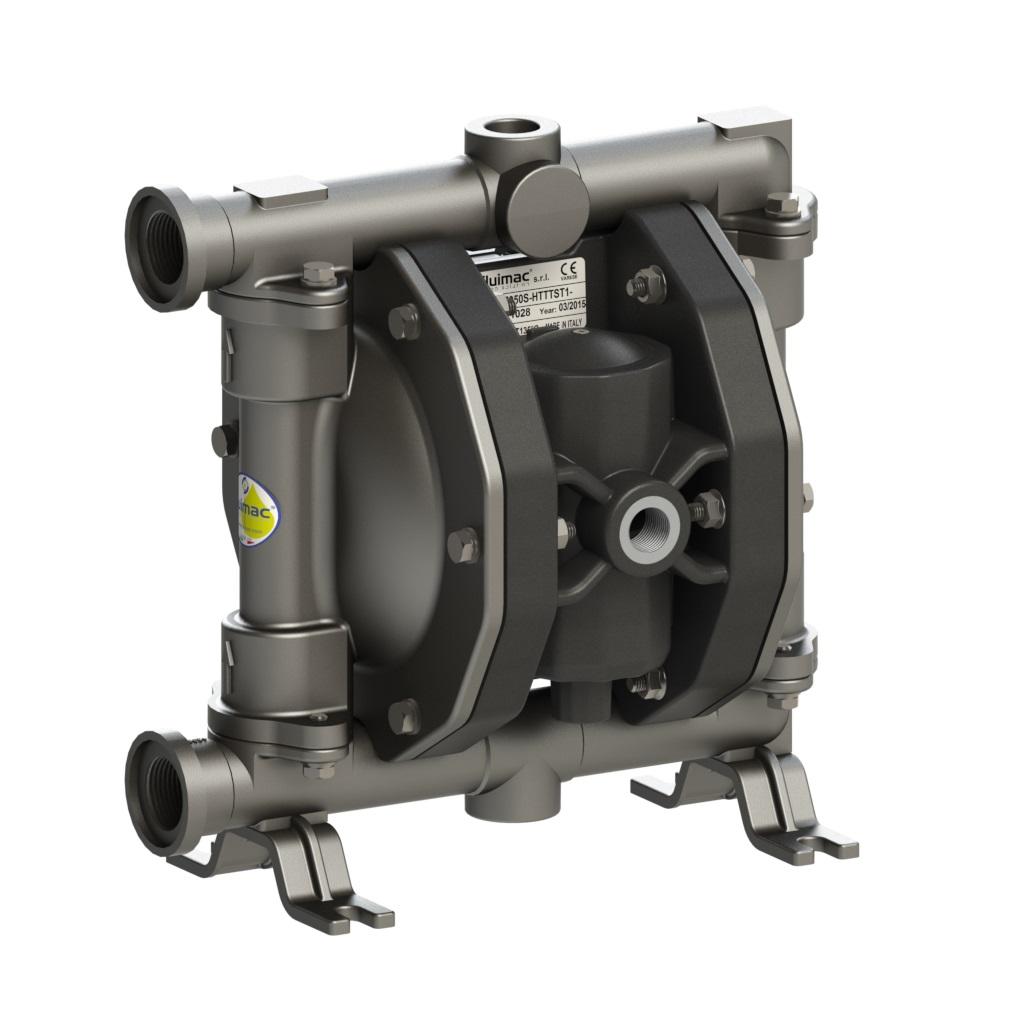

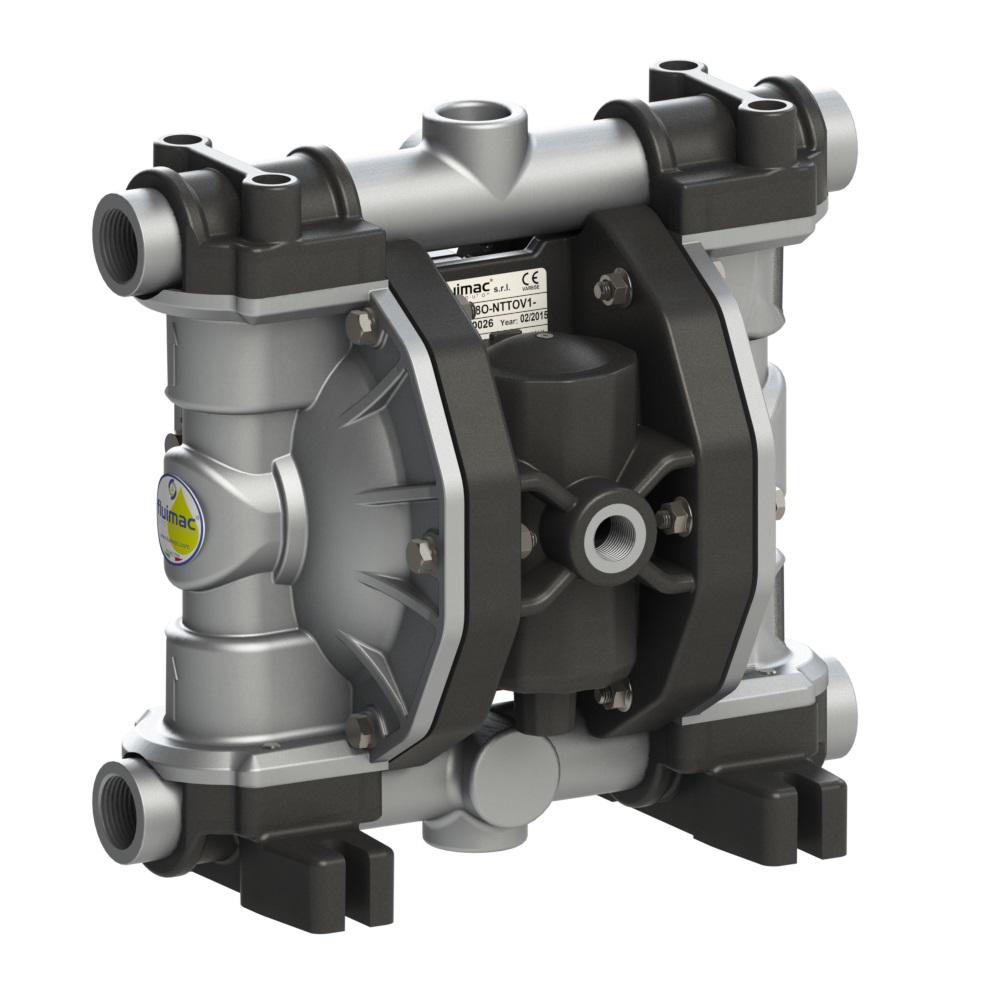

 The draft of the FLUIMAC’s double diaphragm pumps, it is mainly developed around the air distribution system, the diaphragm’s high technology, the pumping chambers geometry and the valves system; this in order to extend the functionality, not only for transfer but also for dosing. The result is an innovative product with next-generation solutions. FLUIMAC's diaphragm pumps are made in PP, PVDF, ALLUMINIUM and AISI 316.

OTHER MATERIAL ALSO AVAILABLE PLEASE CALL FOR MORE INFO.

Fluid connections: 1/2” BSP

Air connection: 1/4” BSP

Max flow-rate: 65 lt/min

Max air pressure: 8 bar

Max delivery head: 80 m

Max Suction Lift Dry: 5 m

Max Suction Lift Wet: 9,8 m

Max Solid passing: 3,5 mm

Noise level: 72 dB

Max Viscosity: 20.000 cps

Displacement per stroke: 140 CC~
