Description

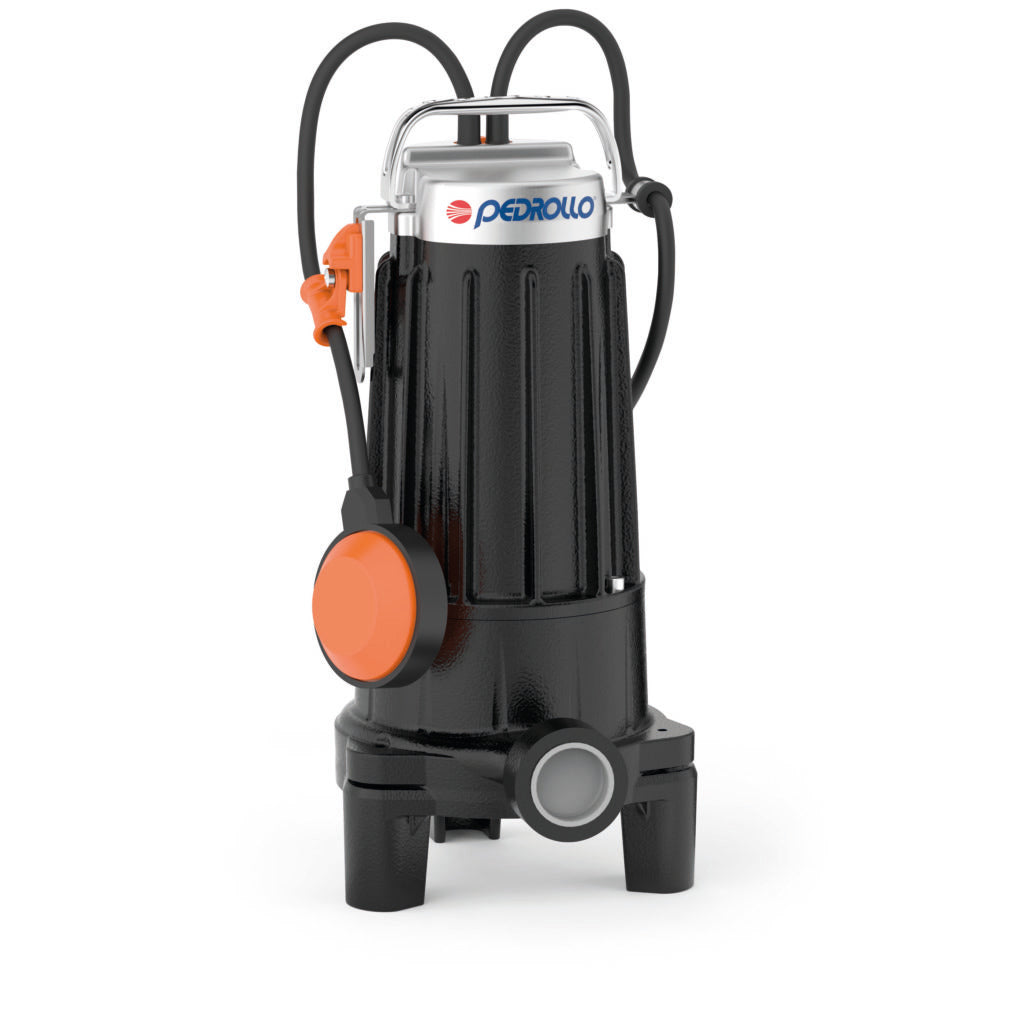

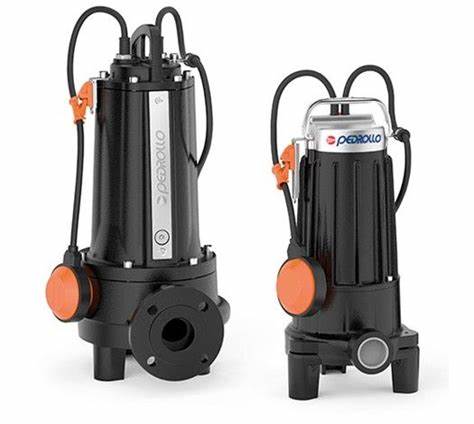

The grinding pump of the TRITUS series, built in cast iron of considerable thickness, exceptional sturdiness, resistant to abrasion and durability, is equipped with a shredder in highly resistant tempered stainless steel which allows to completely grind solid bodies and fibers contained in the water. drainage and wastewater in the domestic and civil sectors, for conveying under pressure to the sewer system through small diameter pipes.
Features
Liquid type: Filthy water
Uses: domestic, civil
Uses: drainage, handling of slightly dirty water, drainage
Typology: submarines
Family: submarines
Performance range:
- Flow rate up to 280 l / min (16.8 m³ / h)
- Head up to 31 m
Application limits:
- Liquid temperature up to +40 ° C
(with power cable of suitable length)
• Level of emptying from the bottom up to:
- 85 mm for TR 0.75-1.1
- 95 mm for TR 1.5-2.2
• For continuous service minimum immersion:
- 300 mm for TR 0.75-1.1
- 350 mm for TR 1.5-2.2
